AIYIMA 2PCS MX50 SE 100WX2 Dual Channels Audio Power Amplifier Board HiFi Stereo Amplifiers Diy Kit

Will be shipped in 3-5 days
Guaranteed safe checkout
View cart

Descriptions:
Note:This is Diy Kits,you need do it yourself. this product pcb board color change to blue, but other part is same.
NO SCHEMATIC AND INSTRUCTION (components values have been marked on the PCB) COME WITH THE ITEM.
MX50 SE version is designed to improve the new version of the classic with thousands of users on the basis of the fifth edition of the MX50.
Lower distortion, better control and resolving power. A single differential input, single-ended voltage amplifier stage, three-stage inverted Darlington output.
Specification:
Supply Voltage: + -15v to + -45v
Output Power: 100W8R (+ – 42v)
Voltage Gain GAIN: 34times
Input Sensitivity: 1.2v 100w RMS 8 Europe
SNR: More than 98DB
Distortion: <0.009 THD 1K HZ 1OW
Output Stage quiescent current per channel IQ Approximately 30MA
PCB Dimension: 76mm *73mm

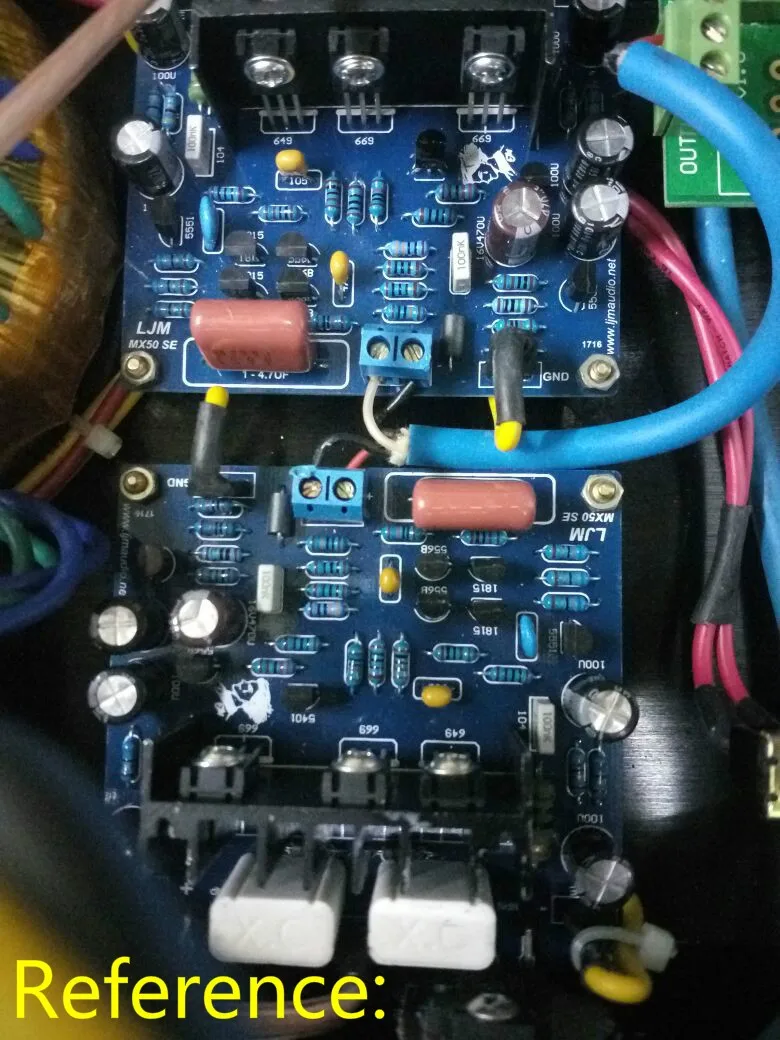

Installation: 649 669 must be installed on supporting the radiator.
After the installation does not require any adjustment, the quiescent current of each tube about 30MA. This version does not need to fly line. Just take two bassoon installed in the radiator can be.
Packaging:
2PCS MX50 SE 100WX2 Dual Channels Audio Power amplifiers Board Diy Kits
Frequency response = 20HZ-25K HZ -0.2DB
THD+N=0.002% 20hz-20KHZ 10W RMS 8 OHM
test data , test equipment:DSCOPE SERIES 3
TEST DSCOPE SERIES 3
test result: frequency 20HZ- 20 K HZ – 0.2 DB
24000 HZ FFT FOR 10W OUTPUT:
Brand Name:
 Aiyima
Maximum Power Per Channel:
 100W
Model Number:
 MX50 SE
Package:
 Yes
Channels:
 2 (2.0)
Type:
 Home Amplifier
